Multifunction display capability, featuring ECDIS,Conning Information Display, Radar/Chart Radar* and Alert Management System**

*a radar sensor needs to be integrated in the network.
** Radar and Alert Management System display capabilities are to be implemented as software update after product release. (option)

Instantaneous chart redraw delivered by FURUNO’s advanced chart drawing engine, making redraw latency a thing of the past

Intuitive new user interface offers fast, precise route planning, monitoring and navigation data management

Interface with FAR-2xx8 series Radar and FAR-2xx7 series Radar for Radar overlay, target track info, route and waypoint exchange via Ethernet

*Software update on FAR-21×7/FAR-28×7 series might be necessary depending on the program number.

Complies with the following IMO and IEC regulations:

IMO A.694 (17)
IMO MSC.191 (79)
IMO MSC.232 (82)
IMO MSC.302 (87)
IEC 60945 Ed. 4
IEC 61162-1 Ed. 5
IEC 61162-2 Ed. 1
IEC 61162-450 Ed. 1 AMD1
IEC 61174 Ed. 4
IEC 62288 Ed .2

Cartography

IHO/S-57 Edition 3 vector chart (IHO S-63 data protection scheme)
- Admiralty Vector Chart Service by UKHO
- C-MAP CAES
- Jeppesen Primar ECDIS Service
ARCS raster chart
C-MAP Professional+*
*C-MAP Professional+ is a private chart, hence not construed as replacement for paper chart.
Compatibility with Admiralty Information Overlay (AIO) for further navigation safety

Additional AIO layer includes all Admiralty Temporary and Preliminary Notices to Mariners as well as additional ENC Preliminary Notices to Mariners, i.e., reported navigational hazards that have been incorporated into paper chart but have yet to be included in ENCs. The service is free of charge as part of Admiralty Vector Chart Service (AVCS) by UKHO.

Sensor Adapter

Ease of installation and maintenance thanks to simplified cabling in the sensor-to-ECDIS/Radar interface delivered by common sensor adapter

Sensor Adapter acts as central medium to gather all the sensor data and collectively feed it to all FMD-3200/3300 ECDIS and FCR-2xx9 Chart Radar in the system.Since sensor adapter can be extended to cover all the sensors within the system, individual cablings in the sensor-to-ECDIS/Radar interface can be greatly reduced.

Navigation sensors can be directly interfaced with the ECDIS processor’s 8 serial I/O ports.Sensor adapters are required under the following conditions:

the sensor data is to be shared amongst multiple networked ECDIS and Radar systems,
the number of sensors interfaced is more than the number of the ports the processor has (8 serial I/O ports, 1 digital IN and 6 digital OUT), and/or
the networked sensors include analog sensors.

In order to integrate onboard sensors into the navigation network, the sensor adapter may be interfaced with the switching hub HUB-100 from which distribution of the sensor data throughout the network is possible.Alternatively, multiple sensor adapters may be interfaced via Ethernet to integrate onboard sensors for use in the shipboard network.

User Interface

FURUNO’s new user interface delivers straightforward, task-based operation

Control Units
The operator control of the FMD-3200 and FMD-3300 can be done with the ECDIS Control Unit RCU-024 or the Trackball Control Unit RCU-026. All functions of the ECDIS can be accessed by using the trackball, scrollwheel and left/right clicking.

Press “EBL 1” and “EBL 2” to activate/deactivate respective EBL; and rotate the encoder to adjust active EBL.
Rotate to adjust brilliance level of the FURUNO monitor; and press to select display palette.
Rotate to adjust radar gain on the radar overlay.
Press “VRM 1” and “VRM 2” to activate/deactivate respective VRM; and rotate the rotary encoder to adjust active VRM.
For acknowledgement of alerts generated.
Rotate to select items within the I.A.bar; and press to confirm the selection of the item.
Full QWERTY keyboard for easy entery of route, event and waypoint names.
Following functions are assigned for each key:

UNDO to undo the last operation

RANGE to select chart scale

UNDO	to undo the last operation
RANGE	to select chart scale

Following functions are assigned for each key:

VIEW/HIDE	to show/hide the I.A. bar and route information window
ACQ/ACT	to activate selected active AIS target
TARGET DATA	to display the detailed target data for selected TT/AIS
TARGET CANCEL	to sleep the selected active AIS target

USB port for charts update, import/export, WP/routes, user setting.

Trackball Module
Trackball module consists of four parts, each of which has the following functions:

trackball	to move the cursor and select an object
left-click	to perform/confirm the action related the selected object
right-click	to display contextual menu while a cursor is on the display area, and to cancel action done on the selected object
scrollwheel	to select menu items

ECDIS, INS

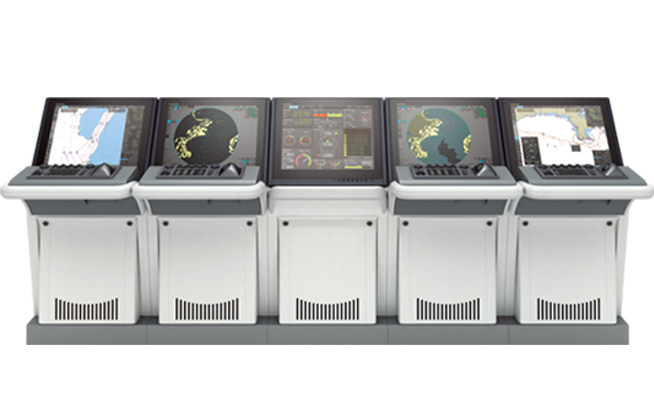

BRIDGE SYSTEM model FURUNO VOYAGER

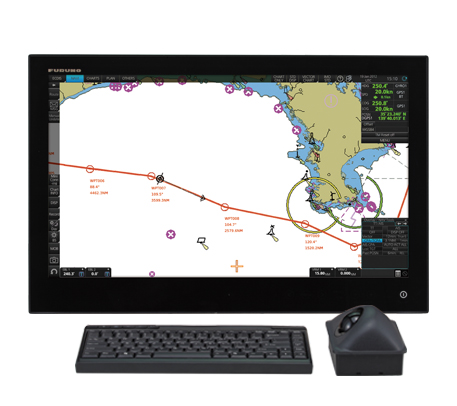

ECDIS model FMD-3100
